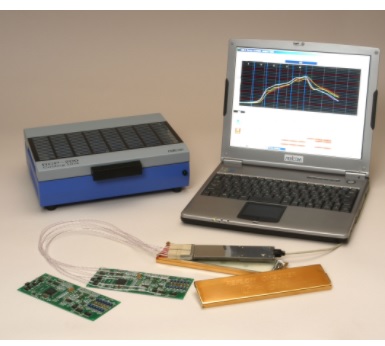

Bộ ghi nhiệt độ hãng MALCOM COMPACT REFLOW CHECKER（RCP-200）
Cooling Unit
| Item |
Specification |
| Model name |
RCF-3 |
| Power supply |
100V～240V AC, (approx. 15W) 50/60Hz |
| Fan |
Square 120 mm (2.9 m3 /min. Max.) 2 pcs. |
| Input gas |
Rc 1/8 screw connection Air 0.5Mpa following |
| Outer dimensions |
350(W)×240(D)×160(H) (㎜) |
| Weight |
Approx. 5kg |
| Item |
Specification |
| Model Name |
RCP-200 |
| Memory unit model name |
RCM-G |
| Measuring Temp. Range |
0 - 300C |
| Measuring Points |
1 - 6 points |
| Max Measuring Time |
Approx. 90 min. (Sampling Time:0.5 sec.)
Approx. 15 min. (Sampling Time:0.05 sec.) |
| Sampling Time |
0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec. (Arbitrary setup possible) |
| Temp. Accuracy |
+/-2C |
| Input |
Thermocouple JIS-K 110Ω max. |
| Power Supply |
Lithiu Ion Rechargeable Battery |
| Outer Dimension |
200(W) x 50(D) x 15(H)(mm) |
| Figure |
Figure |
| Weight |
Approx. 400g |
| Data Transmission Method |
USB |
| Reflow Profile Analysis Software |
TMR-1 |
- * The measuring accuracy does not include the error of thermocouple.
- * The maximum measuring time does not consider the thermal resistance, and this is not the time allowed for
measurement inside the reflow furnace.
- * The above specifications are subject to change without notice.
|
