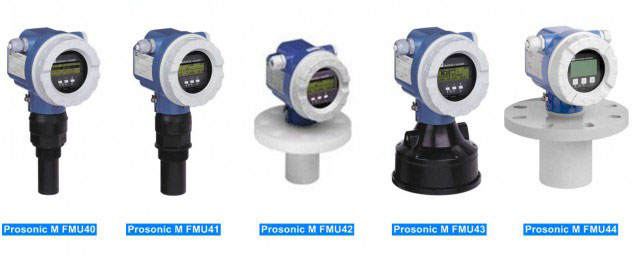

Prosonic M là thiết bị đo mức kiểu siêu âm có thiết kế nhỏ gọn đo mức chất lỏng và chất rắn. Prosonic rất lý tưởng cho các giám sát liên tục của mực nước và chất thải, với toàn bộ thiết bị kiểm tra tiêu chuẩn 6P IP68/NEMA. Có thể ứng dụng cho các bồn chứa, các điểm trung chuyển băng tải…Có phiên bản 2 dây và 4 dây để lựa chọn.
Non-contact ultrasonic level measurement for liquids and solids using the Time of Flight principle.
- Simple menu-guided operation with 4-line plain text display
- Envelope curves on display – you see what the instrument sees
- Maintenance-free
- Free Fieldcare Device Setup software
Applications
Prosonic M is both compact and reliable, providing continuous, non-contact level measurement in both liquids and bulk solids. For liquid level measurement, Prosonic is ideal for continuous monitoring of water and waste levels, with the whole instrument tested to IP68/NEMA 6P standards. In bulk solids applications,
Prosonic provides reliable measurement in controlled monitoring of silo levels, conveyer transfer stations and hoppers. Prosonic M is robust, cost-effective and versatile. It can be used for flow measurement in open channels and weirs and in conjunction with our RMA422 display (see Recorders & System Components section), Prosonic M is a cost- effective solution for both screen and pump control.
Available in both 2 and 4-wire versions, Prosonic M features an integrated temperature sensor for Time of Flight correction so that measurement is accurate, even with temperature changes. Prosonic M has a 4-line menu-driven display and comes with free Fieldcare Device Setup software for simple commissioning, maintenance, diagnosis and documentation of the measuring point.
Prosonic M is easily integrated into existing process control systems such as HART®, PROFIBUS PA and FOUNDATION Fieldbus, and comes with both EEx ia and EEx d approvals for hazardous area use.
