Mã sản phẩm: RCP-200
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

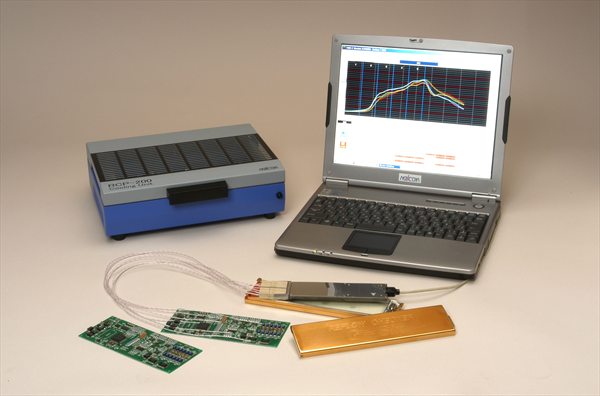

●Proprietary "Heat Resistant Micro Connector" makes it possible to measure at 6 points.
●High Heat Resistance, Excellent Performance, and Directly Transfer Data to a PC.
●The GOLD color surface reduces radiant heat, increasing heat resistance.
●Exclusive "Cooling Unit" effectively cools down the memory unit and "Convenient Storage Case" available.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification
Model Name RCP-200
Memory unit model name RCM-G
Measuring Temp. Range 0 - 300C
Measuring Points 1 - 6 points
Max Measuring Time Approx. 90 min. (Sampling Time:0.5 sec.)
Approx. 15 min. (Sampling Time:0.05 sec.)
Sampling Time 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec. (Arbitrary setup possible)
Temp. Accuracy +/-2C
Input Thermocouple JIS-K 110Ω max.
Power Supply Lithiu Ion Rechargeable Battery
Outer Dimension 200(W) x 50(D) x 15(H)(mm)
Figure Figure
Weight Approx. 400g
Data Transmission Method USB
Reflow Profile Analysis Software TMR-1
  • * The measuring accuracy does not include the error of thermocouple.
  • * The maximum measuring time does not consider the thermal resistance, and this is not the time allowed for
       measurement inside the reflow furnace.
  • * The above specifications are subject to change without notice.
