Mã sản phẩm: FCX-50
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

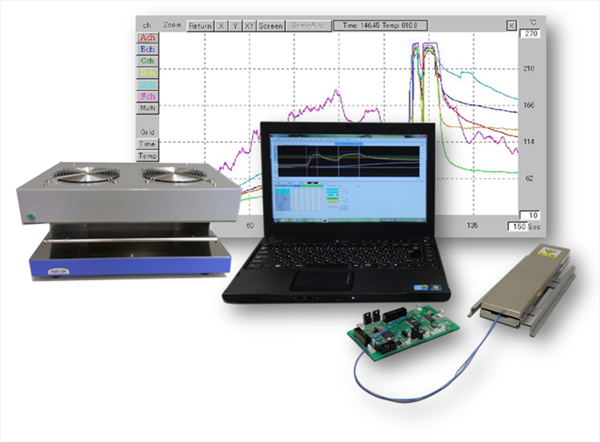

●High thermal performance, being smaller and lighter(6 points measurement, width 65mm)
●Unnecessary Interface unit for the data transmission to a PC
●Bluetooth enables wireless data transfer to a PC
●The additional devices and TMR-1 software spread the width of measurement
   (plus α 6 channels, plus α Observation monitor, plus α O2 concentration monitor, plus α Air velocity monitor)
●Install Battery level indicator

Yêu Cầu Giá Tốt

Thông tin sản phẩm



Model Name FCX-50
Model Name RCX-S
Measuring Temp. Range 0~500℃ * 1
Max Measuring Time Approx. 10 hours * 1 * 2
Sampling Time (sec.) / Max. Storage Time 0.05sec./4h50min, 0.1sec./10h40min,0.2sec./21h20min, 0.5sec./48h20min,1.0sec/96h40min, 2.0sec./193h20min,4.0sec/386h40min, 8.0sec./773h20min Arbitrary setup possible
Temperature Accuracy ±1℃
Measuning Points 1-6 Points
Heat Resistant Connector Miniature Connector
Input Thermocouple JIS-K 110Ω max. 0.1 10m
Power Supply AAA battery Manganese batteries, Alkaline battery, Nickel-metal hydride
Outer dimensions

Memory unit :50 (W) x 170 (D) x 18 (H) mm

(w/o Heat resistant case)

Heat resistant case: 65 (W) x 245 (D) x 25 (H) mm

Data Transmission Method USB, Bluetooth
Weight Approx. 550g (Conveyor Attachment System are not included)

*1 It differs from the heat resistant time of RCM-S main unit

*2 It is the experimental value by AAA batteries. The max. measuring time depends on battery capacity.
