Mã sản phẩm: MS-5C
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
●The specific gravity of the flux is automatically managed.
●The specific gravity of the flux is digitally displayed.
●The flux temperature is digitally displayed.
●Temperature correction (20C conversion) circuit is built-in.
●The flux contamination is digitally displayed.
●Automatic management of the flux level.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification

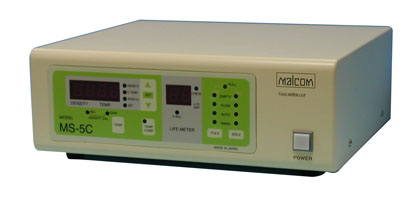

Model Name MS-5C
Specific Gravity Range 0.800 - 0.900 (Standand)
Specific Gravity Accuracy +/-0.003
Temperature Correction for Specific Gravity Built-in temperature correction circuit (20C conversion).
Liquid Depth Management Between 5mm of the upper/lower limits.
Temperature measurement Range 10C~50C(thermistor) +/-2.0C
Life Meter Flux contamination rate (digital display) indicated by PPM (0 - 500 PPM)
Supply method of liquid (Pump Capacity) Automatic pump supply (Head:1m, 500ml/min)
Liquid Empty Alarm Automatically signals alarm: buzzer & LED (red), output relay
Usage Tank 18L (direct use possible)
Output Relay 0-IV (DC)
Sensor Cord 3m
I/O tube 6m
Material Quality Vinyl Chloride, Stainless Steel, Viton, PE, PP, Fluorocarbon, PA, Polyurethane, and EPT
Operation Temperature 10C - 50C
Power Supply AC100V (or AC200V) 50/60Hz
Power Consumption Rating: 35VA
Fuse 2A
Weight 11kg
  • * The above specifications are subject to change without notice.
