FMCW Radar Continuous Level Sensor MWS-10RF Wadeco

Mã sản phẩm: MWS-10RF
Sử dụng cho Model:
Hãng SX: Wadeco
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

Cảm biến đo mức liên tục FMCW Radar MWS-10RF Wadeco

Model: MWS-10RF Hãng: Wadeco

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Cảm biến đo mức liên tục FMCW Radar MWS-10RF Wadeco

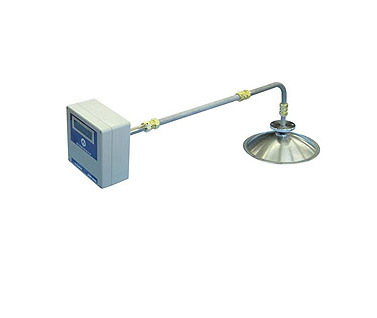

The antenna, which is the sensing head, can be installed in the high temperature zone without the need of additional cooling devices.

The antenna and controller are easily connected by circular waveguide tubing, using special 90。 turns and straight pieces.
Microwaves are unaffected by temperature, flames, vapour, airborne particles or dirt.
High accuracy and reliability
Error less than 10mm.
False measurements caused by double-reflected waves are eliminated through the use of rotary microwaves.
The accuracy of the measured range is not affected by fluctuating temperatures nor does it deteriorate over extended periods.
Utilizes filters which eliminate spurious signals.
The operational state is shown on your personal computer
It displays an FFT spectrum, the received signal and various preset values.
The received signal, FFT spectrum and the trend measurement are continuously displayed. This displayed data can be recorded and reviewed in real or accelerated time.
Use of the recording and reviewing capabilities allows the system parameters to be optimised offline.
The display indicates and outputs the internal temperature and any abnormal conditions. (i.e. a lowering of received signal power, rising temperature in the controller, software version mismatch and communication failures.)

Automatic power supply 90~240V, 50/60Hz.
Communicates with computer by RS-232C.
4-20mA, analogue output.
RS-422 digital output and input terminals.
