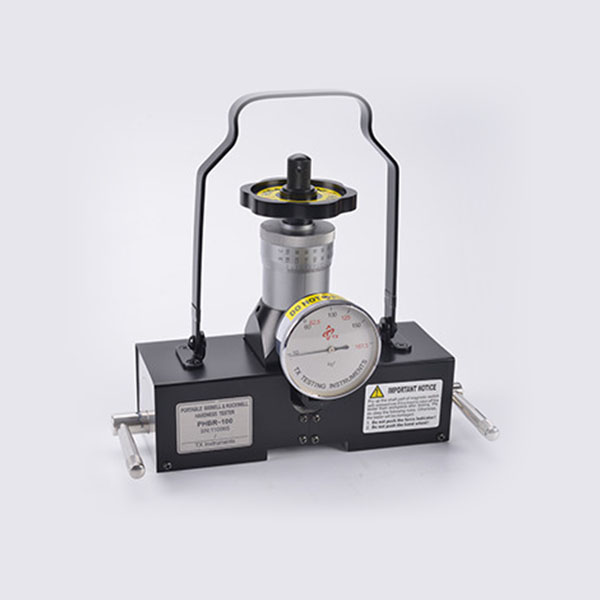

Máy đo độ cứng Brinell and Rockwell PHBR-100 Tianxing

Mã sản phẩm: PHBR-100
Sử dụng cho Model:
Hãng SX: Tianxing
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Fix test head to the surface of iron and steel parts to test the hardness by applying magnetic force. Follow Brinell and Rockwell hardness test method completely, it could be read the Brinell and Rockwell hardness value directly. Test condition complies with standard of GB/T 230.2 and GB/T 231.2.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

It is suitable for precise and rapid hardness testing on-site for body hardness of large, assembled, could not be cut and moved steel and iron parts.
Test hardness of steel plate, pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available.
Test hardness of weld joint in boiler, pressure vessels, and pressure pipes.
Replace low accurate and reliable Leeb hardness testers.

Initial Test Force for Rockwell: 10kgf
Total Test Force for Rockwell: 60kgf, 100kgf, 150kgf
Total Test Force for Brinell: 62.5kgf, 125kgf, 187.5kgf
Test head for Rockwell: 120°diamond indenter, 1.588mm carbide ball indenter
Test head for Brinell: 2.5mm carbide ball indenter, 5mm carbide ball indenter
Indication Error: Comply with GB/T 230.2 and GB/T 231.2 standards
Repeatability Error: Comply with GB/T 230.2 and GB/T 231.2 standards
Testing Resolution: 0.5 HR
Test range: Brinell 0.005mm( indentation diameter)
Apply range: Rockwell: HRA, HRB, HRC
Brinell: 16~650HBW
