Máy đo độ cứng Brinell PHB-150 Tianxing

Mã sản phẩm: PHB-150
Sử dụng cho Model:
Hãng SX: Tianxing
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

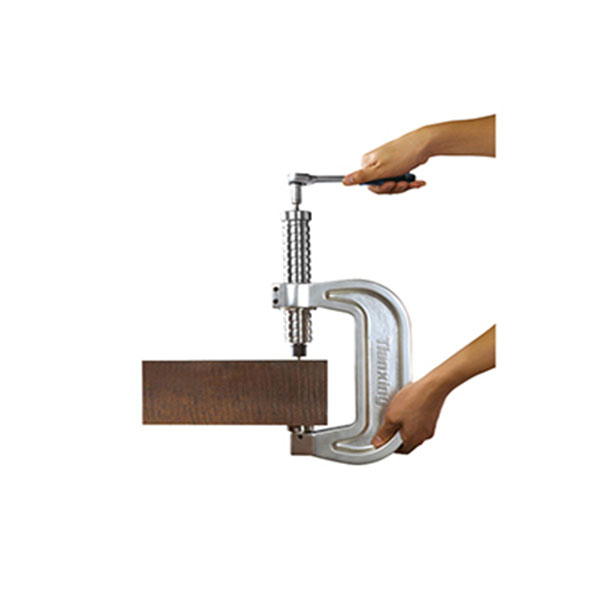

The PHB-150 Pin Static Brinell hardness tester is designed following the Brinell hardness test method. The test force is controlled by a shear pin. After reading the diameter of the indention with the reading microscope, the Brinell hardness value can be obtained from the look up table.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

This kind of pin Brinell hardness tester is especially suitable for assemblies inconvenient to be taken to the lab and not allowed to be cut.

The PHB-150 Pin Static Brinell hardness tester can be widely used to test the hardness of forgings, castings, steels, nonferrous metal and its alloy products, and to test the hardness of annealed, normalizing and tempered mechanical parts.

Compared to the rebound type hardness tester, the pin Brinell portable hardness tester has many advantages such as higher precision, fewer factors affecting accuracy and lower requirement on the surface roughness. The test result meets the requirements of most drawings without conversion and is more widely accepted in the international business.

Test Force 1,580 kgf
Indenter: 7.26mm Steel ball indenter
test range 100~350HBW
4mm Carbide ball Indenter,
test range 350~650HBW
Indicator Error: ≤2~3% Comply with ISO, ASTM
Repeatability Error:≤2~3% Comply with ISO, ASTM
Test Range: 100~650HBW
Opening dimension: 150mm(Height) x100mm(Throat Depth)
Net Weight : 4.2 kg
Application: Castings, Forgings, Steel Products, Heat Treatment
