Máy đo độ cứng Brinell PHB-3000a Tianxing

Mã sản phẩm: PHB-3000a
Sử dụng cho Model:
Hãng SX: Tianxing
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

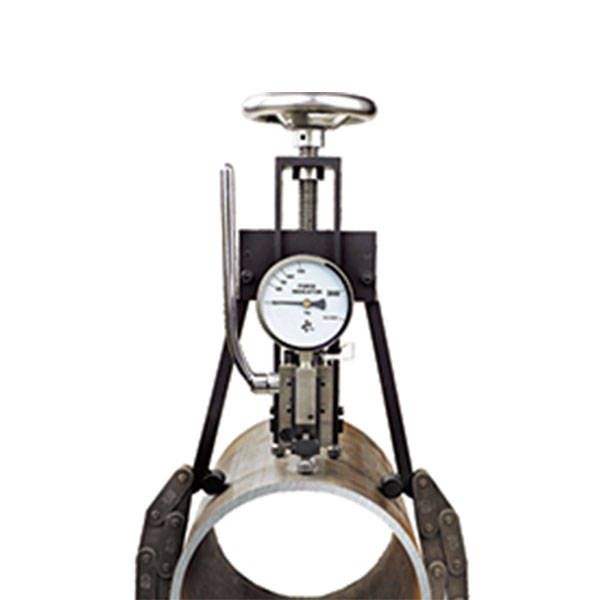

nstall the testing head into the chain adaptor, when testing, using the chain to fix the tester on the surface of the work piece. And then handle the pressure lever to apply test force.  The testing head is a small hydraulic system in which a release valve is used to control the test force.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

When the test force rises 3000kgf, the release valve will open and pressure will fall down, and it needs to apply the test force repeatedly 3-4 times to make the needle of the pressure gage point to 3000kgf for 3-4 times. Thus it is equivalent to the test condition of Brinell hardness testing method to hold 3000kgf test force with 10mm ball for 10-15 seconds, which complies with ASTM E110.
