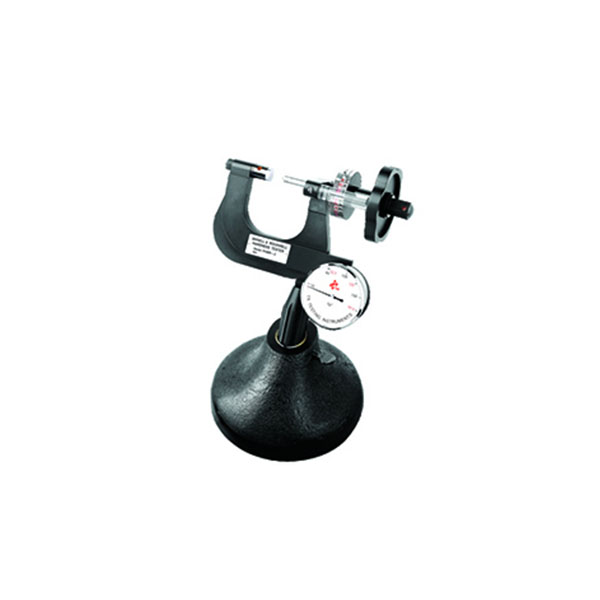

Máy đo độ cứng Brinell và Rockwell di động PHBR-2 Tianxing

Mã sản phẩm: PHBR-2
Sử dụng cho Model:
Hãng SX: Tianxing
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
The PHBR series portable Briness & Rockwell hardness testers are designed and developed based on the PHR series testers according to Brinell and Rockwell hardness testing methods. The test principle,test conditions and test accuracy are all up to the international standard ISO6508/6506.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

The PHBR series hardness tester can work as both Rockwell hardness tester and Brinell hardness tester. They can solve most of the hardness testing problems in the industry. HBR series Brinell &  Rockwell hardness testers have a higher testing accuracy. The test results meet most requirements of product standard or drawings and can be well accepted in international trade.

Rockwell initial test force:  10Kg
Rockwell total test force:      60Kg,100Kg,150Kg
Brinell test force:                  62.5Kg,125Kg,187.5Kg
Rockwell indenter:                120°diamond cone, 1.588mm hard alloy ball
Brinell test ball:                     2.5mm, 5mm hard alloy ball
Indicator Error:                     Complies with ISO and ASTM.
Repeatability Error:              Complies with ISO and ASTM.
Test resolution:                    Rockwell 0.5HR, Brinell 0.005mm(indentation diameter)
Test range:                          Rockwell HRA, HRB, HRC, Brinell 16-650HBW
Application range:                Rockwell for products or semi finished products of common metals,including steel, cooper, aluminum, carburized layer, hard alloy, etc.Brinell for castings,    forgings, steel        raw materials, non-ferrous metal.
