Máy đo độ cứng C Clamp Rockwell PHR-20-12 Tianxing

Mã sản phẩm: PHR-20-12
Sử dụng cho Model:
Hãng SX: Tianxing
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
PHR-20-12  C clamp Rockwell hardness tester is designed according to the basic principle of Rockwell hardness test. The principle and structure of this kind of hardness tester is in accordance with the American Standard ASTM E110.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Compared with small type, C clamp Rockwell hardness tester applies part clamping structure and similar reading system as micrometer, so it is prior to small type for its good stability, repeatability, accuracy.

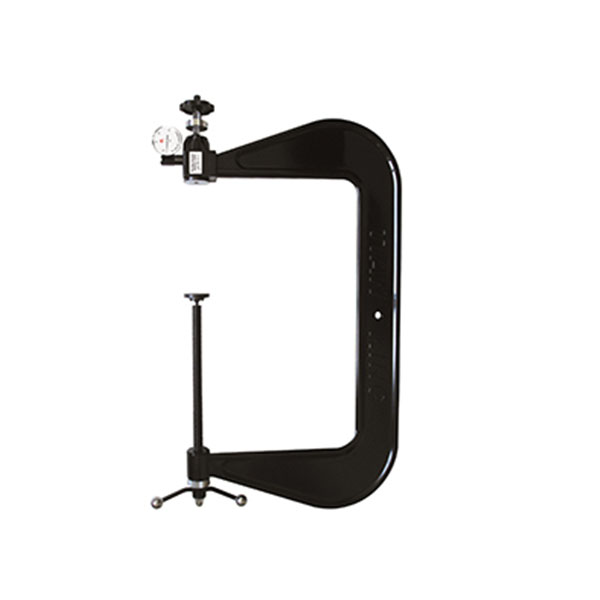

This Rockwell hardness tester is small, light, accurate portable hardness tester. It consists of C- shape frame, screw arbor, and test head. It could test flat or curve parts as long as the parts could be clamped and the test surface erects the test head. It could be applied in production inspection and acceptance inspection to replace low accurate Leeb hardness tester.

Preliminary test force:10 kgf
Total test Force: 60 kgf, 1000 kgf, 150 kgf
Test head: 120°diamond indenter
1.588mm carbide alloy ball
Indication Error: complying with ISO 6508 and ASTM E18
Repeatability Error: complying with ISO 6508 and ASTM E18
Test Resolution: 0.5HR
Application range: common metal including iron and steel, cooper, aluminum
