Máy đo độ rung 230 DIGITAL METER Balmac

Mã sản phẩm: 230 DIGITAL METER
Sử dụng cho Model:
Hãng SX: Balmac
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Digital Vibration Meters
Hãng: Balmac

Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail:

      • Zalo: 0984.843.683

Thông tin sản phẩm

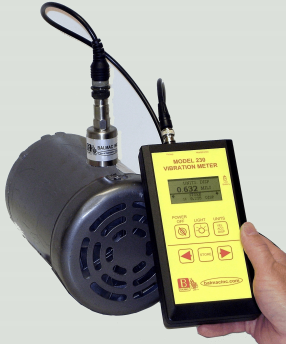

Model 230 measures and stores overall vibration amplitude. Measurements are stored in an internal memory for later recall and recording. The portable,battery-operated, hand-held meter features a 100 mV/g Accelerometer for measuring vibration Velocity, Displacement and Acceleration. It features Automatic Amplitude Scaling, Auto Power Off and a large, easy-toread backlit Display viewable in direct sunlight or low light locations. The Meter includes a 5' straight pickup cable, a 7" probe extension and a magnetic base for the Vibration Pickup.

Thông số kỹ thuật

*Displacement: 0.015 to 199.9 mils (peak-peak)
*Velocity: 0.001 to 199.9 in/sec (peak)
*Acceleration: 0.001 to 199.9 g’s (peak)
*RANGE: Automatic Scaling Over 3 Ranges
*High: 200
*Medium: 20
*Low: 2
*Displacement: 0.000001 inch (0.001 mil) (1 micro-inch)
*Velocity: 0.001 inch/sec
*Acceleration: 0.001 g
*ACCURACY: 5% of Full Scale
*RESPONSE: 60 to 420,000 RPM
(1 to 7,000 Hz)
*DISPLAY: Graphic LCD with Low Battery indicator
*INPUT: Industrial ICP Accelerometer (100 mV/g)
*Acceleration Range 80 g peak
*OUTPUT: Signal for Headphones 1/8" Mono jack

Xem thêm: Digital Vibration Meters 235 DIGITAL METER Balmac
