Máy đo độ rung phòng chống cháy nổ hãng ACEPOM ACEPOM314

Mã sản phẩm:
Sử dụng cho Model:
Hãng SX:
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Máy đo độ rung phòng chống cháy nổ hãng ACEPOM ACEPOM314
    • Liên hệ báo giá:
    • SĐT: 0948.007.822
    • Mail:
      • Zalo: 0948.007.822

Thông tin sản phẩm

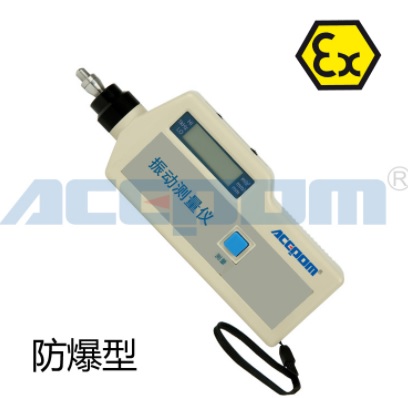

Máy đo độ rung phòng chống cháy nổ hãng ACEPOM ACEPOM314


ACEPOM314 Explosion-proof vibration meter is mainly used for the detection of machinery vibration parameters including : displacement, velocity (intensity) and acceleration. Based on the parameter collected from the bearing set , ISO2372 and default specification of machine & company,   we can judge the condition (Good, warning or dangerous) of machines ( Fan, pump, compressor, motor, etc).

Since the mid-1980s, this instrument has been used by large and medium-sized enterprises in China, and has been sold more than 20,000 sets so far. With very low repair rate, it is an ideal point inspection instrument.


Acceleration probe:Piezoelectric shear acceleration probe

Measurement range: acceleration:0.1~199.9m/s2

           velocity: 0.1~199.9 mm/s

           displacement: 0.001~1.999 mm

accuracy: ±5%±2digit

Frequency range:  acceleration:10Hz~1kHz(LO),1kHz~15kHz(HI)

Velocity : 10Hz~1kHz

displacement: 10Hz~1kHz

Display: 3-1/2digital display,refresh1s,push “MEAS”to measure,release to hold value

Output: AC output,2V in full range

Access to headset VP-37

The load impedance 10kΩ or more

Battery: 1 * 9V battery to support work over 25h

Automatic power off if no operation within 1 minute


Size: 185(H)×68(H)×30(D) mm

Weight: 250 g

Standard configuration

1·host   1

2·Battery   1

3·Short test pole S    1

4·Belt    1

5·Manual   1

6.Long test pole   1

7.Sound insulation headset   1
