Máy hiện sóng Oscilloscope TPI 460a

Mã sản phẩm:
Sử dụng cho Model:
Hãng SX:
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

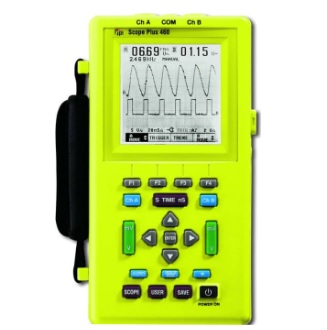

Máy hiện sóng Oscilloscope TPI 460a

Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail:

      • Zalo: 0984.843.683

Thông tin sản phẩm

Máy hiện sóng Oscilloscope TPI 460a

20 MHz Oscilloscope, Dual Channel, True RMS DMM,Leads, Charger

  • 20 MHz Oscilloscope, Dual Channel, True RMS DMM,Leads, Charger
  • 20 MHz Bandwidth Capture signals from AC/DC drive motors, sensors, actuators, line and control voltages, UPS and industrial machines.
  • Cursor Readout Allows you to measure the width and amplitude of the signal and display it on the screen instead of trying to figure it out manually
  • Decibels Allows you to accurately measure sound signals
  • Pre and Post Triggering View the waveform before and after the point the scope triggers at to find glitches and other anomalies with the signal
  • Trend Mode Graph readings over a predetermined time period to check for surges or dropouts
  • Dual Input View two waveforms on the display for comparison and troubleshooting
  • True RMS DMM Measure AC/DC volts up to 600V, frequency to 20 MHz, and resistance to 20 Meg ohm. True RMS allows you to obtain accurate measurements of non-sinusoidal AC voltage and current waveforms found in controls and circuits
  • Real Time Sample Rate Capture spikes and dropouts of industrial signals with real time sampling of 25 megasamples per second
  • Bright LCD Backlight Adjust brightness levels for clarity under any light condition
  • Optically Isolated RS232 Output Transfer data safely without a direct connection to your computer's circuitry
  • Continuous Autoset Feature automatically determines the correct vertical and horizontal settings for optimum waveform viewing. Autoset provides hands free operation while moving between test points
