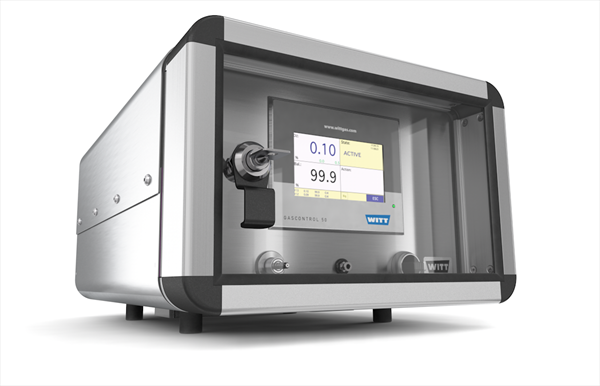

Máy trộn khí KM1000-2 FLOW MAP WITT Gas

Mã sản phẩm: KM1000-2 FLOW MAP
Sử dụng cho Model:
Hãng SX: WITT Gas
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

Gas Mixer
Model: KM1000-2 FLOW MAP
Hãng: WITT Gas

Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail:

      • Zalo: 0984.843.683

Thông tin sản phẩm

- Gas mixing systems for 2 defined gases, designed for packaging using a protective atmosphere in the food industry.
- Applicable for all types of packaging machines; whether vacuum, thermoforming, pillow bags or manually-sealed compartments. The KM-FLOW uses electronic mass flow controllers (MFC) instead of conventional proportional valves for mixing gases. Combined with an analyser results a maximisation of the packaging quality accompanied by minimisation of the gas consumption. This efficient workflow can be ideally realised with MFC.
- Capacity range 10 up to 500 Nl/min for each gas line.

- simple to operate via touchcreen
- freely programmable gas mixtures can be selected at the press of a button or by bar code scanner
- simplified analysis of results by digital data bus
- optimised gas consumption helps to reduce costs, cause user-definable settings for each different product (only in combination with an analyser)
- low maintenance
- easy to read display
- data transfer via USB port
- administration of product names for individual positioning
- measured data storage
- user level with different access authorisation
- up to 3 mixers cascadable. One unit with display and others as black-box realised
- data log
- permanent control of the O2-concentration
- electronic control of the sample gas, alarm signals are given if the set limits are exceeded and a potential-free contact operates to e.g. auto-stop your machine to avoid quality problems
- lockable transparent door for protection of settings (option)
- independent of pressure fluctuations in the gas supply
- independent of packing speeds
- independent of package sizes
- splash-proof, robust stainless steel housing
- smooth and easy-to-clean surface
