Mã sản phẩm: NAM-100
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
A mixture of nitrogen and air in the furnace of stationary type reflow reflow equipment and simulators, to generate the oxygen concentration of any gas.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification

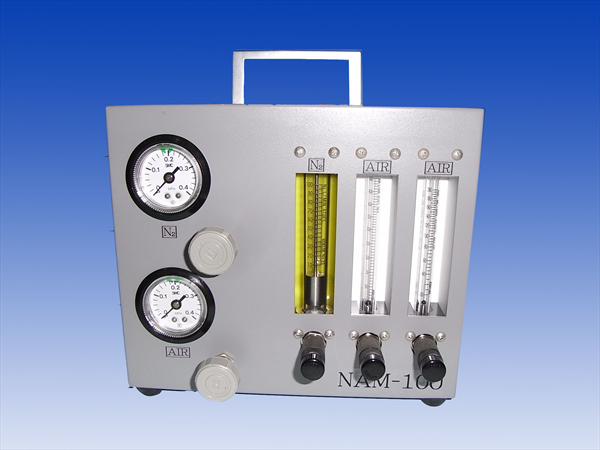

Model Name NAM-100
Applicable gas Nitrogen (main) and air (sub)
IN Nitrogen 8/6-dia. one-touch coupling (flexible tube), 0.4 - 0.9 MPa
Air 6/4-dia. one-touch coupling (flexible tube), 0.4 - 0.9 Mpa
Out 8/6-dia. one-touch coupling (flexible tube), 0.2Mpa setting
(when Air is discharged)
Setting Range Nitrogen Max. 100 liter/minutes(when Nitrogen is 0.2Mpa)
Air Max. 5 liter/minutes + 150 ml/minutes (0.2Mpa)
Outer Dimension 236(W)×240(H)×155(D)(mm)
  • * The above specifications are subject to change without notice.
