Mã sản phẩm: IRC-1
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

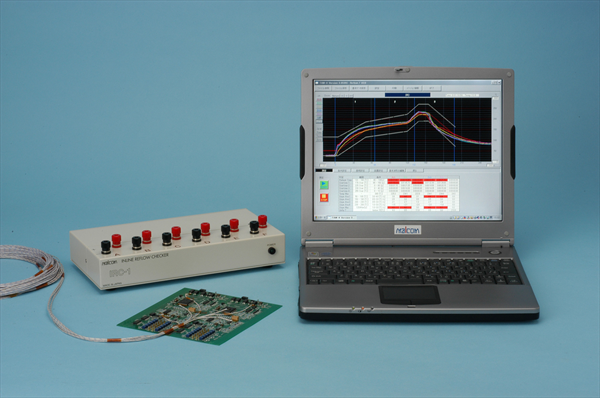

● You can set the temperature of the reflow oven speedily.
● Temperature control conditions can be determined automatically, manual analysis is possible.
● Measurement data can be converted CSV, you can create any report.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification
Model Name IRC-1
Measuring Temp. Range 0 - 300C (resolution : 0.1C)
Max Measuring Time 60 min.
Sampling Time 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec.
Temp. Accuracy +/-2C
Measuring Points 1 - 6 points
Input Thermocouple JIS-K 1000Ω max. (equivalent to φ0.1mm 8m)
Power Supply AC100V - 240V 50/60Hz
(Use the same ground as that of the reflow furnace)
Outer Dimension 250(D) x 130(L) x 55.2(H)(mm) (Terminal part : 15.2mm)
Weight Approx.1.4kg
Reflow Profile Analysis Software TAM-4IRC for Windows XP/2000
  • * Measurement accuracy excluding thrmocouple tolerance.
  • * The above specifications are subject to change without notice.
