Mã sản phẩm: RCX-1
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

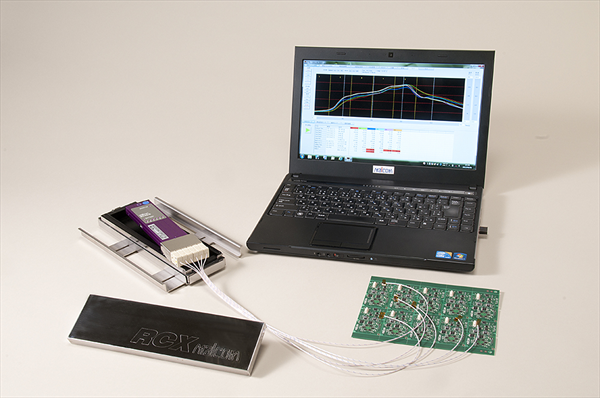

Measuring instrument that can be added is a new concept of measurement unit (temperature measurement unit 12ch, reflow camera, wind velocity and oxygen concentration sensor) to measure the temperature of the core needed to 6ch the basic unit.

Yêu Cầu Giá Tốt

Thông tin sản phẩm


● You can freely add and configure the necessary functions (temperature measurement 6ch) core unit.
● We have prepared a unit wind speed, oxygen concentration and temperature measurement camera 12ch required
    to manage the reflow process.
● Special program by the system, displayed on the screen the same oxygen concentration, wind speed camera
● The support functions in the profile condition is easy to create a profile.
● For easy to obtaining and exchange, power supply is AAA battery.
● in the wireless data transfer is possible to adopt a new BLUETOOTH.

Item Specification

Model Name

Main unit RCM-S
Measuring Temp. Range 0~500℃ *1
Max Measuring Time Approx. 10 hours * 1 * 2
Sampling Time (sec.) /Max. Storage Time 0.05sec./4h50min, 0.1sec./10h40min, 0.2sec./21h20min, 0.5sec./48h20min, 1.0sec/96h40min, 2.0sec./193h20min, 4.0sec/386h40min, 8.0sec./773h20min Arbitrary setup possible
Temperature Accuracy ±1℃
Measuning Points 1-6 Points
Heat Resistant Connector Miniature Connector
Input Thermocouple JIS-K 1kΩ max.
0.1 10m
Power Supply AAA battery
Manganese batteries Alkaline battery Nickel-metal hydride
Outer dimensions Memory unit (w/o Heat resistant case) 55 (W) x 170 (D) x 18 (H) mm 200g
Heat resistant case: 65 (W) x 245 (D) x 25 (H) mm 370g
Data Transmission Method USB, Bluetooth
Weight Approx. 570g (Heat resistant case and battery are included)
  • * 1 It differes from the heat resistant time of memory unit.
  • * 2 It is the experimental value by AAA battery. The max. measuring time depens on battery capacity.
  • * The above specifications are subject to change without notice.
