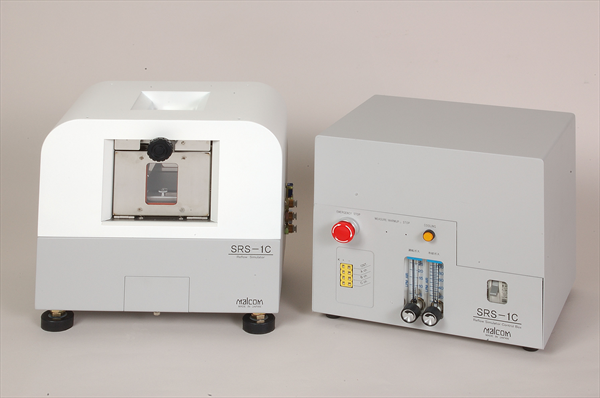

Mã sản phẩm: SRS-1C
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
● The top surface of the original heater control matrix, the optimal temperature distribution in the heating test
    can also be unbalanced heat capacity with respect to the substrate.
● For each stage as well as temperature, time can be arbitrarily set, you can freely extend the time of peak reflow
    temperature maintenance.
● The observation windows on three sides and top of the front and back of the device, can be observed
    in the furnace during operation Mokushi the state.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification
Model Name SRS-1CS
Applicable Circuit Board Up to 70W x 70L x 10H mm
Outer Dimension Main Unit : 320W x 285D x 310Hmm
Controller unit : 290W x 235D x 270Hmm
Heating Method Upper-face : Hot air
Lower-face : Extreme infrared radiation
Cooling Method Flowing air or N2 air (with flow adjustable valve)
ower Supply 200V 50/60Hz 3kVA 3Phase
Air 0.3 - 0.5MPa 100 liter/min (Maximum)
O2 Concentration in Furnace
(when using N2)
100ppm minimum (Heating furnace is sealed up)
PCB Installation Flat plate system
Upper-Heater hot air heater : Approx. 2.8kW (Approx. 350W x 8 series)
* Deviation to standard nozzle can be set.
Lower-Heater Extreme infrared radiation heater : Approx. 360W
Temp. Accuracy 5C maximum (Maximum range : 50(W) x 50(L)mm in the center)
Measuring Temp. Range Room temp. - 330C
Measuring Points 3points
N2 Gas Supply Function 25 liter/min. with flow regulating valve during operation.
Control Exclusive softwarefor Windows XP
Weight Main unit : Approx. 12kg Controller unit : Approx. 8kg
  • * The above specifications are subject to change without notice.
