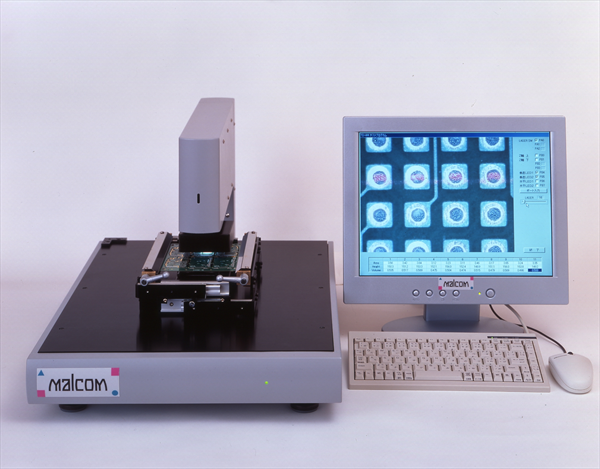

Mã sản phẩm: TD-4M
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
●Minimum functions and high cost performance.
●Measure the height of solder paste using slit laser. * A Colored CCD camera makes it possible for clear
   image inspection.
●Coordinates-Display-Function allows you to move PCB to the inspection position that you desire easily.
●Save data in USB memory.
●SPC data analysis of the automated measurement data. (optional)

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification
Model Name TD-4M
PC Board clamp table Circuit board gripping allowance 3mm, both-side clamping is possible
Outer Dimension 420(W) x 635(D) x 350(H) mm
System High-speed image processing computer system built in
Weight 22kg
Power Supply AC100 - 240V, 50-60Hz, 140W (Service AC outlet not included)
Interface USB for printer
USB for flash memory
Keyboard Input
Mouse Input
Monitor Output
