Mã sản phẩm: TD-6A
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
●Active Slit-Laser scans the board, and displays a full 3D image.
●Multi-colored LED illuminates using 16.77 million colors, making it possible to measure various kinds of PC
   Boards accurately.
●Gerber data program allows for speedy data inspection.
●A variety of 2D & 3D measurement functions can be selected according to user needs.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification

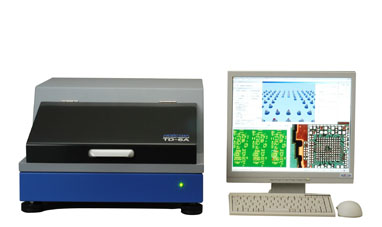

Model Name TD-6A
Inspection Object Misprinting, Area, Height, Volume
PCB Warpage Range ±3mm
Measurement Range 5.85mm(W), 4.39mm(D), 50 - 300μm(H)
Resolution Approx. 5.2μm
Approval / rejection function Automatic inspection using color image processing.
Automatically determines if paste meets user-specified standards using color image processing.
Speed 2D 1sec. / field (5.85mm x 4.39mm)
Speed 3D 7.5sec. / 6cubic mm (Resolution 5.2 x 20μm)
Inspection Data Testing Method Teaching data 150 frame / PCB, Gerber data conversion program
Inspection Data Output Test File format Available SPC Analysis software (Option)
PCB Dimension Minimum. : 50 x 50mm Max. : 250 x 330mm Thickness : 0.5 - 3.0mm
Measurement Range Possible 240×320mm
Optical Section Light Source1 Overhead RGB LED (16.77 million colors)
Light Source2 Angled RGB LED (16.77 million colors)
Light Source3 Semiconductor Laser
Camera High-speed & High-resolution color camera
Camera Field 6.5 x 4.9mm
Height Measuring Principle Optical cutting triangular surveying by laser slit light, irradiation angle 45deg.
Area Measuring Principle Color image processing
Slit-Laser Semiconductor Laser : 8mm(W) x 10μm
Safety Classification Class 3B
Casing Circuit board clamp table Circuit board gripping allowance 3mm, both-side clamping is possible
X axis Stroke : 260mm
Yaxis troke : 340mm
Zaxis troke : ±5mm
Outer Dimension 500(W) x 690(D) x 320(H) (mm)
System High-speed image processing computer system built in
Weight 45kg
Power Supply AC100 - 240V, 50-60Hz, 450VA
Interface Universal serial bass USB x 2 Keyboard Input Mouse Input Monitor Output
