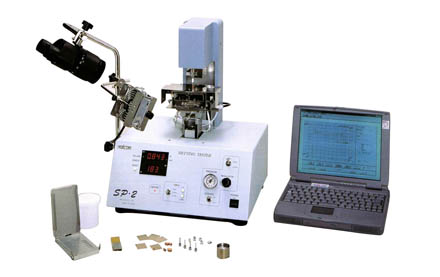

Mã sản phẩm: SP-2
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
●Can test and evaluate solder paste, PC board and parts-lead.
●All wetting process can be observed from glass windows.
●"Wetting Balance Measuring Method","Micro-Wetting Balance Measuring Method", and "Quick Heating Method"
    are possible optionally.
●Can simulate reflow oven profile with hot air and N2 purge.
●Electro-balance sensor adopted allows detection of very small force.The wettability of microchips can now be
   examined by this unit.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specifications
Load Sensor Principle Electro - balance sensor
Measurement range 10.00gf~-5.00gf
Measurement accuracy * ± (10mgf + 1 digit)
Resolution Less than 900 mgf: 0.001 gf More than 900 mgf: 0.005 gf
Temp. Sensor Measurement range 0~300℃
Measurement accuracy ±3℃
Heater unit Temp. of heater unit Room temperature ~ 300℃
O2 Concentration Simple closed heater unit with nipple for N2 purge test
Temp. profile setting 1. Preheat temp.
2. Preheat time
3. The rate of temp. rise 3℃ /sec. (standard)
4. Maximum temp.
5. Maximum temp. time
Melting point Preset solder paste melting point
Table movement Automatic: operated by PC
Manual: operated by Up/Down switch (selectable 3 steps speed)
Digital output RS-232C cable (Malcom format)
Air supply

Original air pressure: 0.2~0.5 Mpa (Approx. 2~5 kgf / cm2)

Adjustment air: 0.2 Mpa (Approx. 2kgf / cm2 )

Power supply AC100V 50 / 60Hz 700W
Weight Approx. 20kg
  • *Load sensor accuracy is not concerned oscillation.
