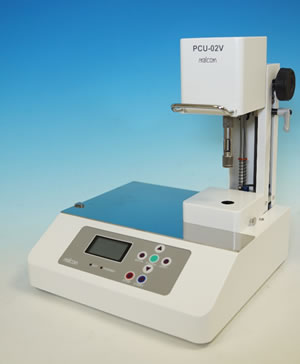

Mã sản phẩm: PCU-02V
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

Yêu Cầu Giá Tốt

Thông tin sản phẩm


●Measure the Viscosity &Thixotropy with 0.2cc, Small Amount of Sample.
●Malcom’s Unique Spiral Sensor realizes continuous measurement of non-newtonian fluids with good repeatability.
●The measurement settings & data save are easily available with the software.
●PCU-02V is a optimum device for Expensive Materials Testing & Analysis, obtaining the Viscosity Characteristics with 0.2cc, Small Amount of sample.
●New-developed Spiral Pump Sensor enables to measure materials having high Thixotropy with good repeatability. (constant Shear rate & time)
●Temp. Control function allows for more accurate measurement and temp. characteristics analysis.
●The software makes it possible for Automatic Measurement & etc.

Measurement Range 20~300Pa.s (20~50Pa.s 20rpm ・50~300Pa・s 10rpm)
Sample Amount 0.2cc
Speed Range (N) 1~100RPM
FIX: 10rpm
Shear Rate (D) 0.6×Ns-1
Measurement Accuracy ±5% of the indicated value
Speed Accuracy ±2%
Temp. Control Range 15~40℃ (when the room temp. is 25℃) Built-in thermostat
Temperature 0~50℃ Resolution: 0.1℃ Accuracy: ±0.5℃
Sensor SUS
Digital Display Viscosity ・ Temp. ・ rpm
Digital Output USB
Recorder Output Viscosity: 1mV/Pa・s Temp: 10mV/℃
Calibration JIS Z8809 Standard Fluid for Viscosity Calibration or
Semi-standard calibration fluid KF96 (option)
Power Supply AC100V~240V 50/60Hz 100VA
Outer Dimension 315(D) x 335(W) x 376(H) mm
Weight Approx. 8kg (including sensor part, approx. 1kg)

* Measurement Accuracy is the accuracy of the PCU-02V tested with Semi-standard calibration fluid under the room temp. 25±2℃ & 10rpm.
* The specifications are subject to change without notice.
