Mã sản phẩm: PCU-200
Sử dụng cho Model:
Hãng SX: Malcom
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng

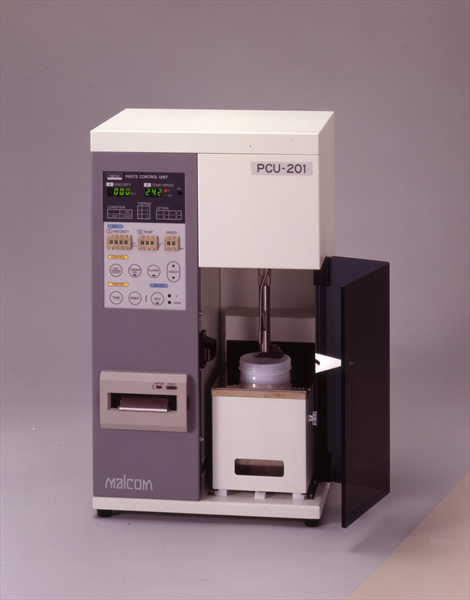

Rotational viscometer of co-axial double cylinder type by spiral pump method.

Yêu Cầu Giá Tốt

Thông tin sản phẩm

Item Specification
Model Name PCU-201 PCU-203 PCU-205
Sensor Malcom Spiral Pump Type
Measurement Range Pa・s 5Pa・s - 800Pa・s
Speed Range N 1 - 50RPM
Shear Rate D (0.6 x N) s-1
Measurement Accuracy +/-5% of indicated value
Speed Accuracy +/-2% of set point
Repeatability +/-0.5%
Temp. Control Range Room temperature +/-5C (setting range15~35C) with built-in heater unit
Other Functions Contact output, buzzer (In the case of the set viscosity value)
Recorder Output Viscosity : 1mV/Pa・s, Temperature : 10mV/C
Printer Display Temp, Visc, S.Rate, RPM, Date, Time
Automatic Measurement --- JIS Standard method JIS plus On-line method*
Interface --- --- RS-232C
Outer Dimension 275(W)×215(D)×465(H)(mm)
Power Supply AC100V~240V 50/60Hz 70VA
  • * The measurement accuracy is guaranteed with the silicon oil by 10 rpm.
  • * The above specifications are subject to change without notice.
