Any mechanical gauge head, with M10, M6 or M3,5 thread can be mounted very quickly by means of an adapter to convert the handle to a plug, snap or depth gauge. Customers can choose among three systems, Standard Lock, Star-Lock and Star-Adjust, to conveniently carry out gauge head changeover in a very short time.
The measurement value is immediately displayed to the operator on the gauge and by simply pressing one of the twin buttons it is automatically uploaded via secure radio transmission to the gauge computer, at a distance of up to 10m.
Seamless synchronization with the gauge computer.
Intuitive 1.8” TFT graphical color display with automatic orientation allows immediate visualization of the measurement value to the operator from any direction.
Possibility to operate in stand-alone mode, not connected to the gauge computer.
IP67 protection rating for use even in severe shop floor environments.
The i-Wave2 handle contains long-life, fast recharging Li-Ion battery, and is supplied with an inductive charging stand ensuring 24/7 use.
Wireless offers following advantages: no cable entanglement or breaks, ergonomic operations, measuring directly at the machine.
Communication software, developed by MARPOSS, gives users the opportunity to connect the i-Wave2 to any commercial computer.

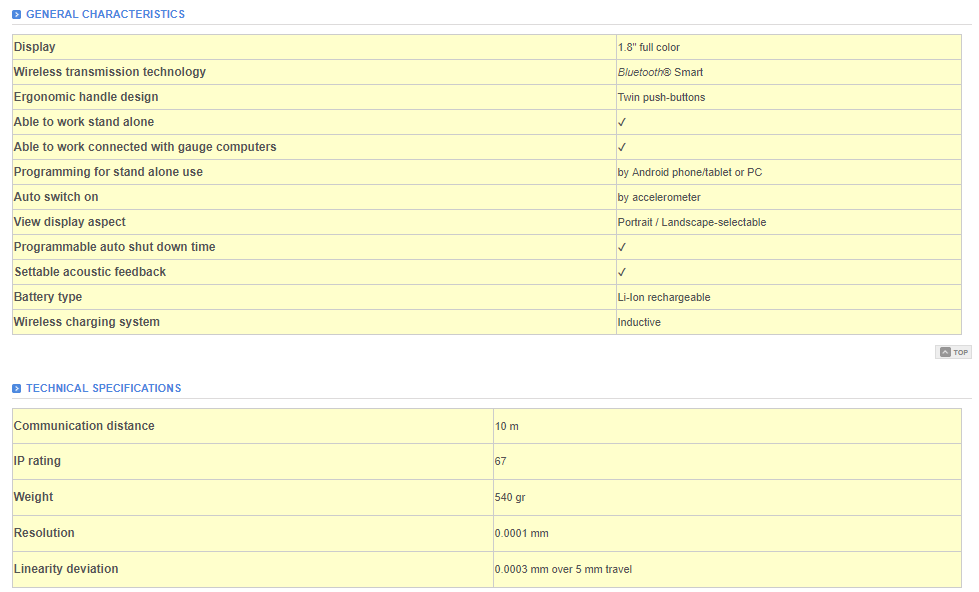

Thông số kỹ thuật
