The IR200 is a general purpose infra-red (4 to 20) mA loop powered temperature transmitter housed in a robust stainless steel body. It is designed as an alternative to traditional probe assemblies for applications where physical contact with the subject (surface of the temperature source) is either not possible or not safe.
The IR200 sensor measures the average temperature of an area depending on the selection of the sensor optics, a choice of precision optics are available for large or small targets at short or long distances.
The two wire (4 to 20) mA output makes the IR200 compatible with standard control loop equipment and a straight forward alternative or replacement for traditional temperature monitoring assemblies in the field.
Temperature Range (-20 TO 500)°C
Fixed Emissivity (0.95)
(4 to 20) mA Loop Powered
Fast Response
For non-reflective non-metals or painted metal surfaces

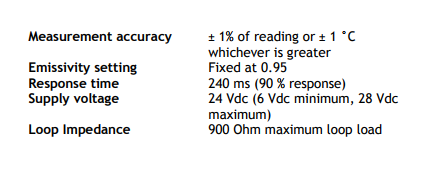

Thông số kỹ thuật
Chi tiết xem tại Wireless Temperature Transmitter WTX700
