The SEM1010 is designed to provide an isolation barrier between a field mounted (4 to 20) mA transmitter
and the process monitoring system. The isolator output is a two wire (4 to 20) mA current sink. The
SEM1010 derives it’s power from the output loop.
(4 to 20) mA Output
Galvanic Isolation 500 V DC Flash Tested 1 KV
High Accuracy 0.05%
21 mm Wide

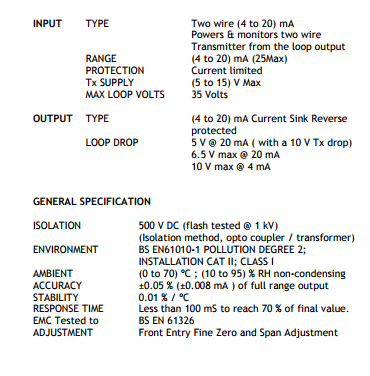

Thông số kỹ thuật
