Provides 2 isolated (4 to 20) mA outputs from 1 (4 to 20) mA input
High Accuracy
Galvanic Isolation
12.5 mm Wide
The SEM1200 is a current loop splitter that provides two isolated (4 to 20) mA passive outputs from a single passive (4 to 20) mA input.The output loops must be powered externally.
It is housed in a 12.5mm wide DIN rail mount plastic enclosure with screw terminals for wiring.

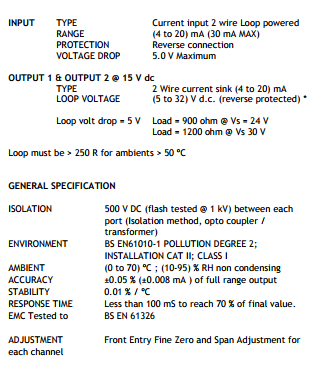

Thông số kỹ thuật
