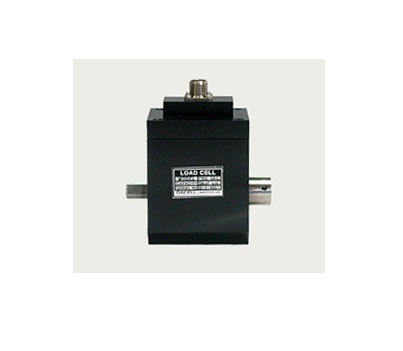

- TRS socket wrench torque sensors are used for fast, accurate measurement of bolt or nut wrenching torque. This model operates in both directions sotightening and break-away torques can be measured.
- It can also be used to check the calibration of mechanical torque wrenches.
Thông số kỹ thuật
| Specifications |
Accuracy |
| Rated capacity(R.C.) |
2kgf-cm~3000kgf-cm (0.196N-m~294.2N-m) |
| Rated output(R.O.) |
1.3mV/V |
| Nonlinearity |
0.3%R.O |
| Hysteresis |
0.3%R.O |
| Reperatability |
0.3%R.O |
| Terminal resitance, input |
350±3Ω |
| Terminal resitance, output |
350±3Ω |
| Insulation resistance |
300㏁ |
| Temperature range, compensated |
-10℃~60℃ |
| Temperature range, safe |
-20℃~70℃ |
| Safe overload |
150%R.C |
| Excitation recommended |
10V DC |
| Temperature effect, on zero balance |
0.05%R.O/10℃ |
| Temperature effect, on rated output |
0.1% Load/10℃ |
| Excitation recommended |
10V DC |
| Safe overload |
150%R.C |
| Cable length |
φ4 Shield 3m |
|
