General Purpose Pulse Generators
Model: AV-1041D-B
Hãng: Avtech Pulse

Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

Model AV-1021D-B is similar to the AV-1021-B, but provides two independent 0 to ±10 Volt output channels. The two channels have separate pulse width, amplitude and polarity controls. One channel

has adjustable delay, and one channel is synchronous with the sync output.

The AV-1041-B and AV-1041D-B offer higher amplitudes (up to ±20V) at PRFs up to 100 kHz, with 100 ns rise and fall times. The AV-1041D-B is the dual-channel version.

All models can be triggered by the internal oscillator, by an external TTL pulse, by a front-panel pushbutton, or by computer command. All models include a gate input that can be used to inhibit triggering. A SYNC output is provided for oscilloscope triggering purposes.

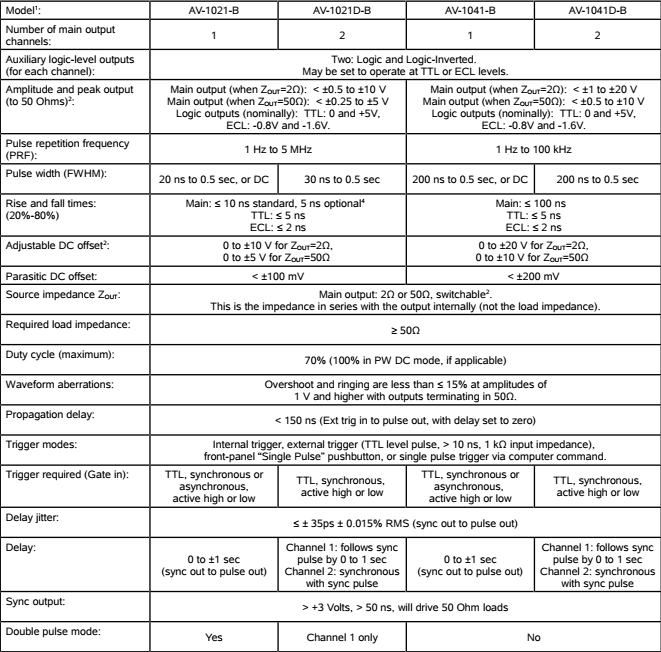

Thông số kỹ thuật


tinh-nang-vuot-troi-AV-1041D-B
