Logic Analyzer and Data Logger LA-2025 Leaptronix

Mã sản phẩm: LA-2025
Sử dụng cho Model:
Hãng SX: Leaptronix
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Logic Analyzer and Data Logger
Model: LV5480
Hãng: Leaptronix

Yêu Cầu Giá Tốt

Thông tin sản phẩm

- Offer I2C, SPI, UART and CAN signal decoding function on PC.

- Provide various signal trigger and capture:

Total of four kinds of trigger modes including Pattern/Edge/AND/OR.

- Pre-trigger, post-trigger, 3 level trigger, and continued-trigger functions allow users to operate easily.

- Bus analysis and glitch capture functions:
2M Bytes~4M Bytes long memory depth;each CH memory depth is up to

- External (synchronous) and internal (asynchronous) capture:Offer a more convenient environment for engineers.

- Provide three sets of searching data functions and six cursor marks. The timing of each trigger point can be shown by the cursor mark.

- Binary code and hexadecimal List mode (State) display.

- Able to save measuring data and waveform results in stand-alone mode. 512Kbits~1Mbits.

- The adjustable sample rate size can be set by users, which avoids long capturing time.

- Provide "Trigger Counter" and "Pulse Wide Trigger" function.

- High-speed Zoom In / Zoom Out techniques.

- Smart software provides text file for saving the Binary Code of waveform results.

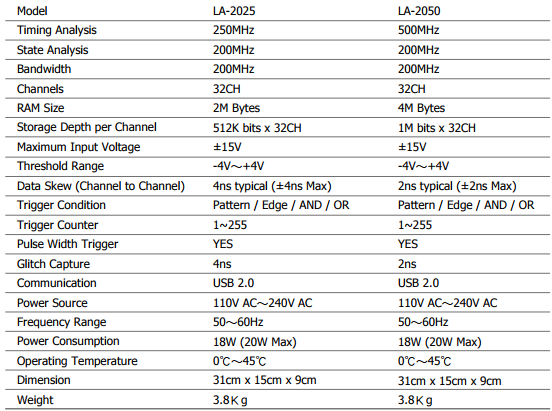

Thông số kỹ thuật


thong-so-ky-thuat-LA-2025
