- You can monitor the load cell outputs on PC easily.
- 1200 times/sec high-speed digital processing
- Pass/fail test（HH・HI・LO・LL）
- Easy to perform the initial setup and calibration
- Up to 10000 measurement and status data can be recorded
- The module is powered by USB, and it can supply excitation voltage to the connected load cell as well.
- Pass/fail test
High & low limit function: HH/HI/LO/LL
- Easy to perform the initial setup and calibration.
Using the software, settings can be saved and edited on PC,
and calibration can be performed as well.
- Waveform display
The waveform of force can be monitored in real time.
You can see if the real-time value is within the high/low,
and the data of waveform can be saved on PC as well.
- Data recoding
Up to 10000 measurement and status (e.g. HI, LO, etc…) data can be recorded.
Interval logging is available, and it is useful for long-hour loading tests and so on.
With the OK/NG (Not OK) count function, you can review results of pass/fail tests as well.

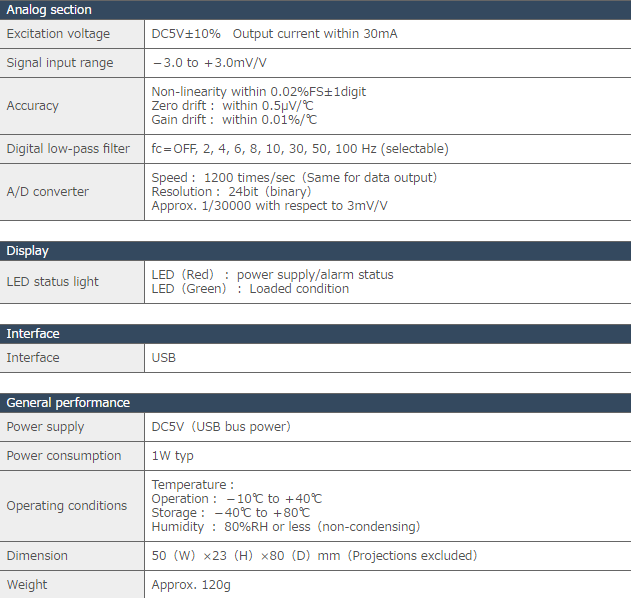

Thông số kỹ thuật
