- We will continue to devote ourselves to research and development of unique products. Please feel free to contact us anytime for further information!
UTM series have been upgraded to UTM II to better meet the various needs of customers!
- Great improvements on the bandwidth (1kHz), sampling rate (6kHz), overload rating (500%), and so on have been made, while all great features of the existing model are succeeded.

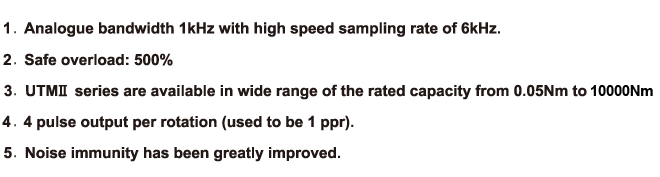

Thông số kỹ thuật
- Measurement range 0.05Nm,0.1Nm,0.2Nm,0.5Nm,1Nm,2Nm,5Nm,10Nm,20Nm,50Nm,100Nm,200Nm,500Nm,1000Nm,2000Nm,5000Nm,10000Nm
- Analogue bandwidth 1kHz with high speed sampling rate of 6kHz.
- Safe overload: 500%
- 4 pulse output per rotation (used to be 1 ppr).
- Noise immunity has been greatly improved.
- Measure small torque with high accuracy
- Enable torque ripple measurement
- Built-in low-drift voltage amplifier
- Power supply DC24V
- No external amplification necessary ±5V analog output voltage
- Maximum rotation speed 20000rpm※
- Slip-ring-less = maintenance-free.
