Available for ac or dc supply voltage applications.
Transmitter is compatible with CFS10, CFS20, and CFS25 flowtubes, and backward compatible to existing CFS10 and CFS20 installations.
Custody transfer applications:
– Quadrature pulse output.
– Tamperproof Sealing option for housing and terminal block covers.
– Weights and Measures Custody Transfer (NTEP) option.
– Weights and Measures Industry Canada Approval option.
Enclosure can be remote-mounted to a surface, or DN80 (3 inch) or DN50 (2 inch) pipe.
Enclosure meets NEMA 4X and IEC IP66/67 ratings.
Transmitter certified for use in hazardous area locations. Agency plate includes CE mark.
Patented digital signal processing (DSP) techniques allow:
– Continuous 2-phase measurement.
– Partial empty tube conditions.
– Start-from-empty batching.
– On-line flowtube verification.
– On-line pressure compensation.
User-configurable, externally powered I/O types isolated from each other include: analog current output and alarm, frequency or scaled pulse output, contact output, contact input.
User-selectable HART (versions 5, 6, and 7) or Modbus communication via LCD indicator pushbuttons.
Remote communication with HART communicator or PC-based configurator.
Local configuration via indicator with pushbuttons.

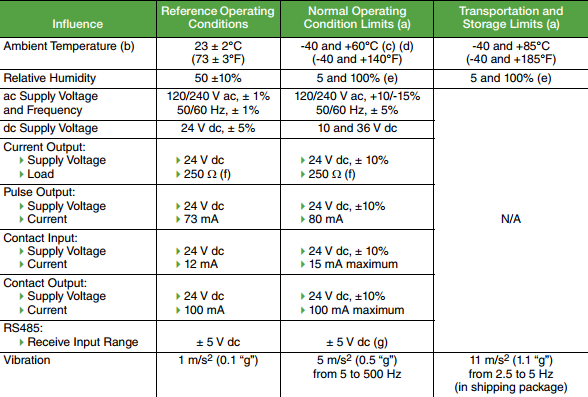

Thông số kỹ thuật
