Đầu đo Centering Gauge Swint Nisshin

Mã sản phẩm: Centering Gauge Swint
Sử dụng cho Model:
Hãng SX: Nisshin
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Đầu đo
Model: Centering Gauge Swint
Hãng: Nisshin


Liên Hệ Hỗ Trợ

SĐT: 0984 843 683

    • Mail: info@ttech.vn

      Zalo: 0984.843.683

Thông tin sản phẩm

 - Iron and nonferrous metal materials are measurable. It's unaffected by oil film.

- Use "Point Finder-i" [Internal Contact Type] for measuring metal and nonmetal materials such as plastic, wood, etc. →【Point Finder series】

- Safety design enables the stylus swing toward X, Y and Z-axes directions and prevents the Centering Gauge Swing Type itself from breakage. Especially, swing width toward X and Y-axis is ±50mm !

- Centering Gauge Swing Type is the ultra-high precision 3D touch sensor (probe) with higher quality than that of Point Finder series.

- Thin workpiece is measurable because the contact pressure between the stylus and workpiece is lower.

- It doesn't cause the triangle error.

- All models have a buzzer. It beeps at the very same time when the stylus touches a workpiece and the LED emits.

- With nonmagnetic stylus, magnetic force doesn't affect to the measuring.

--> Check the detail of

Customized model with a connector (but no CT board) can take information as an external trigger code. However, the code is read out as analog signals, so it's neccesary to translate the analog signals into the digital ones.

- Use it for all kinds of measurements such as for reference position, inside/outside diameters, centering, angle, groove width, and height.

- Supersensitive CT board is built-in the Centering Gauge Swing Type and it doesn't cause 'Chattering' phenomenon.

+ Chattering: When the stylus touches to a workpiece, the LED flashes on and off because of the variation of both voltage and current occured by electrical resistance.

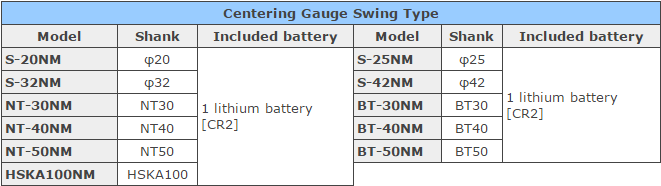

Thông số kỹ thuật


thong so Centering Gauge Swint
