High source/measurement resolution
Generation: 10μV/1nA, Measurement: 1μV/100pA
Basic source and measurement accuracy: ±0.02%
Pulse measurement with minimum pulse width of 50μs and 1μs step

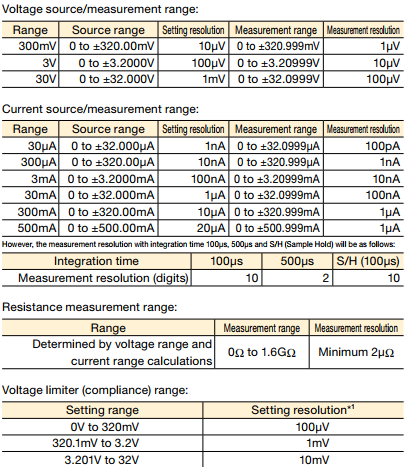

Wide range of source/measurement
Voltage: 0 to ± 32V, Current: 0 to ± 500mA
Two slope linear sweep function
Sink-enabled bipolar output
GPIB and USB interfaces
Thông số kỹ thuật
>>Tìm hiểu thêm DC Voltage/Current Source/Monitor 6242 ADCMT
