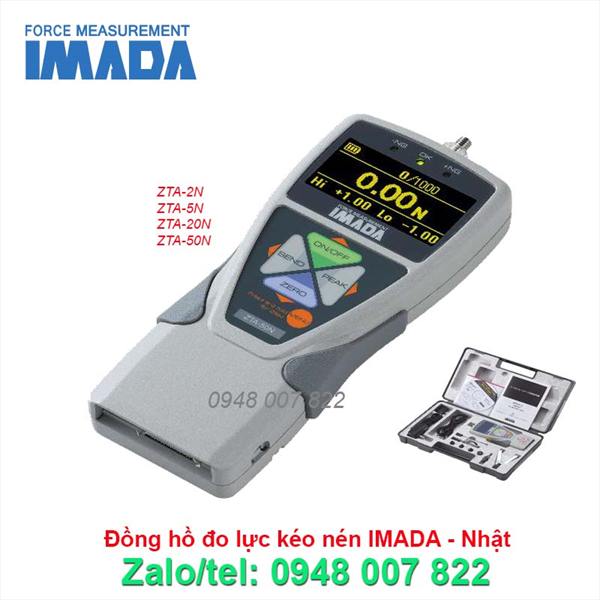

Đồng hồ đo lực kéo nén Imada ZTA-2N, ZTA-5N, ZTA-20N, ZTA-50N, ZTA-100N
| Model |
ZTA |
| Feature |
Advanced model with various functions such as data saving in USB memory stick, displacement I/O and more. |
| Accuracy |
+/-0.2%F.S.+/-1digit |
| Unit of measurement (*1) |
N, kgf, lbf (*2) |
| Display |
4-digit Organic EL |
| Display update |
16 / sec |
| Sampling rate |
2000 data / sec at maximum (*3) |
| Battery |
8 hours (2 hours charge) (*4) |
| Safe overload rating |
Approx.200%F.S. |
| Operating environment |
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Function |
Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off),
Dumping,Time display, 1st/2nd peak,Displacement detection at force peak value,
Displacement zero reset at selected force, setting lock |
| Output |
USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm,
Sub comparator 2 steps (output of large or small judgment), USB flash drive, Displacement. |
| Overload warning |
Approx.110%F.S. (Warning message and alarm ) |
| External connecting switch |
SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Available linear scales (*6) |
– Online driver output (a line receiver according to RS422/485 must be built in.)
– Open collector output (Voltage drop between contacts must be smaller than 0.5V. |
| Weight |
Approx.490g (*7) |
| Dimensions |
Please refer to dimensions. |
| Accessory(*6) |
AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Attachments (The set of attachments varies according to range.),
USB cable,Carrying case, Adaptor for USB flash drive. (*8) |
*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model and international one.
*2 [N indication] The indication of 2N and 5N models is mN or N. The indication of 1000N,2500N and 5000N model is N or kN.
[kgf indication] The indication of 2N and 5N models is gf.
[lbf indication] The indication of 2N and 5N models is ozf.
*3 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*4 The battery is more consumed when connected to USB flash drive or a linear scale.
*5 Not always available for Mitutoyo digimatic products.
*6 Some linear scales could not be available even if they meet the mentioned specifications.
*7 Weight is slightly different according to range.
*8 USB flash drive is not included.
Model List for High Functionality Model Digital Force Gauge ZTA series
| Model |
Range |
Display |
Resolution |
Thread |
| ZTA-2N |
2N (200gf) |
2.000N/2000mN (200.0gf) |
0.001N/1mN (0.1gf) |
M6 |
| ZTA-5N |
5N (500gf) |
5.000N/5000mN (500.0gf) |
0.001N/1mN (0.1gf) |
| ZTA-20N |
20N (2kgf) |
20.00N (2.000kgf) |
0.01N (0.001kgf) |
| ZTA-50N |
50N (5kgf) |
50.00N (5.000kgf) |
0.01N (0.001kgf) |
| ZTA-100N |
100N (10kgf) |
100.0N (10.00kgf) |
0.1N (0.01kgf) |
| ZTA-200N |
200N (20kgf) |
200.0N (20.00kgf) |
0.1N (0.01kgf) |
| ZTA-500N |
500N (50kgf) |
500.0N (50.00kgf) |
0.1N (0.01kgf) |
| ZTA-1000N |
1000N (100kgf) |
1000N/1.000kN (100.0kgf) |
1N/0.001kN (0.1kgf) |
*lbf indication is also possible.
|
