Đồng hồ đo lưu lượng MUT2500EL Euromag

Mã sản phẩm: MUT2500EL
Sử dụng cho Model:
Hãng SX: Euromag
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Đồng hồ đo lưu lượng
Model: MUT2500EL
Hãng: Euromag

Liên Hệ Hỗ Trợ

    • SĐT: 0984 843 683

    • Mail: info@ttech.vn

      • Zalo: 0984.843.683

Thông tin sản phẩm

This new sensors series follows the successful tradition of the MUT 2200/2500 introducing a measurement range of more than 1:1000 without linearization software.
These kind of performances allow very accurate measures on a wide flow rate range and to count lower flow rates that, before, would have been reset because of the effects of the converters cut off.


This flanged sensors series bases its operations on Faraday principle, by wich a conductor crossing a magnetic field generates a potential pependicularly oriented to the same field. In this case the flow tube made in stainless steel AISI 304 is equipped with carbon or stainless steel flanges, two coils are installed on the top and inferior part; the magnetic field, generated by the electric current crossing the coil, induces in the electrodes in the potential proportional to the flow rate.

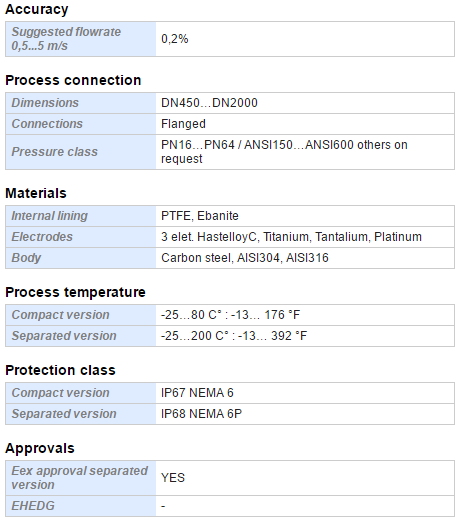

Thông số kỹ thuật


thong so ky thuat MUT2500EL
