Match the circuit impedance by setting the applied voltage, frequency and source resistance
Built-in Pulse Generator for testing gated devices such as relays, SCRs and TRIACs
128 pin scanning with 128 Commons using the built-in front panel IDC ribbon cable connectors
Add the benefits of Power-Off test to your current diagnostic test strategy
Can be used as a Stand-alone unit using the convenient front panel controls and touch screen LCD
Display A or B channels individually, in the switching ALT mode or in A+B mode to display both signatures at the same time
Connect to a Huntron Access Prober for full test automation
Use the Huntron Workstation software to create circuit board tests, store analog (V-I) signatures, make good vs. bad comparisons and present the results
Having the Good board signatures stored on your PC eliminates the need to keep one for direct comparison
A software based test allows for the sharing of board test knowledge with all personnel

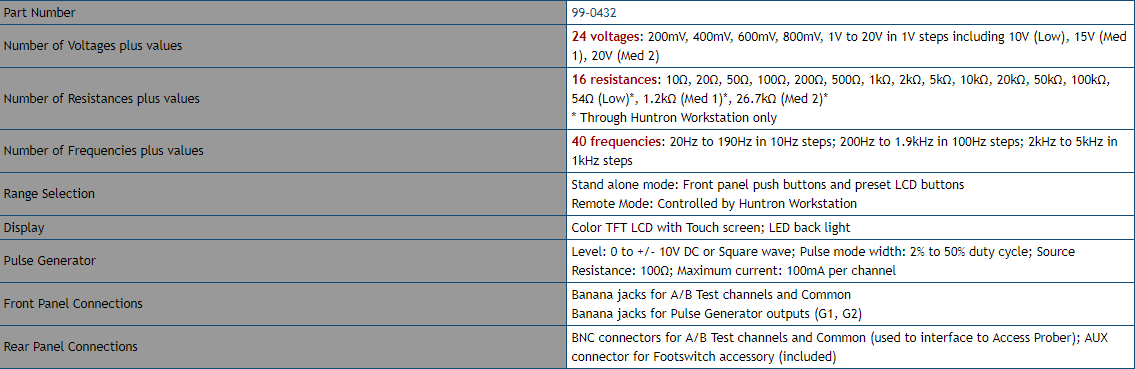

Thông số kỹ thuật
