The world’s first, convert the magnification from 50x to 5,800x with a zoom lens
The HDS series also offers the widest magnification range in the market with a zoom lens.
There is an extraordinary range from 50x~5,800x. There are two modules with the base module providing the zoom magnification. The high resolution module couples the zoom lens to a revolving turret with four objective lenses. When coupled with the digital enhancement, the magnification range extends up to 5,800x.
Observation of high resolution depth with 3D
The components of the HDS system are high resolution optics, precise digital image capture, image processing software and high resolution LCD image display.
The image processing includes image management, 2D image capture, 3D image creation and very accurate measurement profiles for height, volume, angles and length. Especially, it’s possible to generate and observe full-focused expansion 3D display through one click.

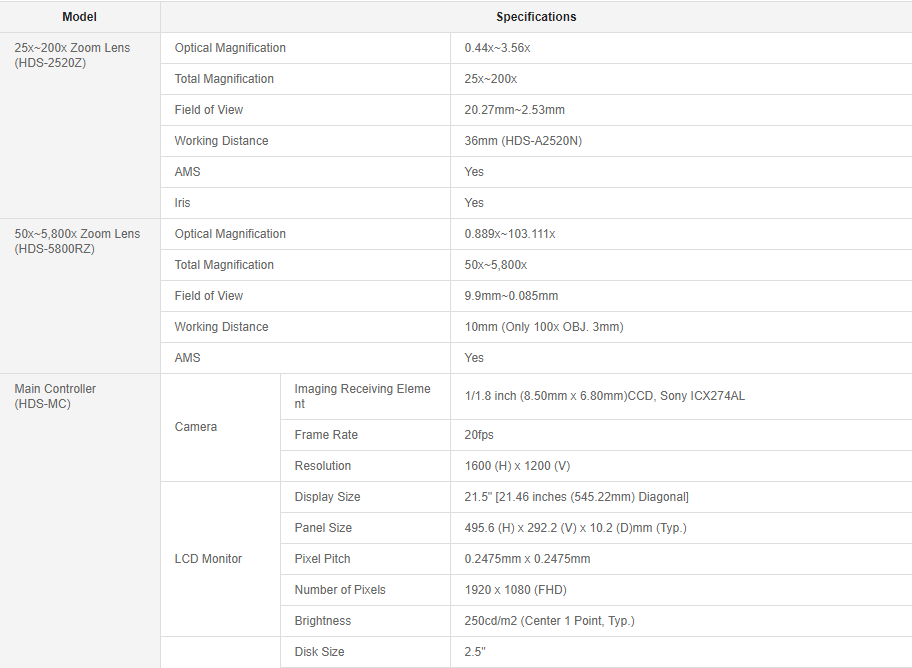

Thông số kỹ thuật
