Measures unbalance of pump Impeller, brake drum, etc. and remove unbalance mass by drilling with automatic index. Equipped with drill correction system.
Balancing plane : 1 plane
Workpiece Mass : 3, 10, 30kg max.
Rotor dia.: ø200mm max.
Chucking adapter : Pneumatic chuck
Balancing Speed : 600 to 1,500min-1
Min. Achievable Unbalance :1.0 μm

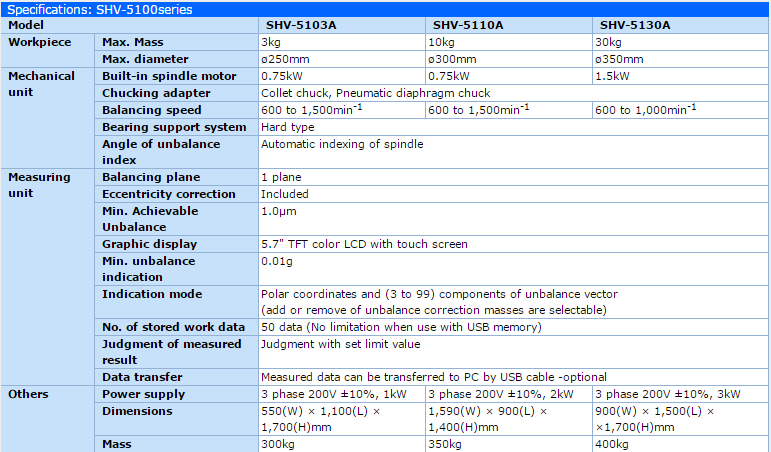

Thông số kỹ thuật
