Automate a work transfer proccess of pre-measuring, correcting, and final-measuring.
- The tact time is 13sec with drill correction
- Balancing plane : 1 plane
- Workpiece Mass : 3.0kg max.
- Rotor dia.: ø115mm max.
- Journal dia.: ø19mm and ø25mm
- Chucking adapter: Taper chuck with key
- Balancing Speed : 800min-1
- Min. Achievable Unbalance :1.0 μm

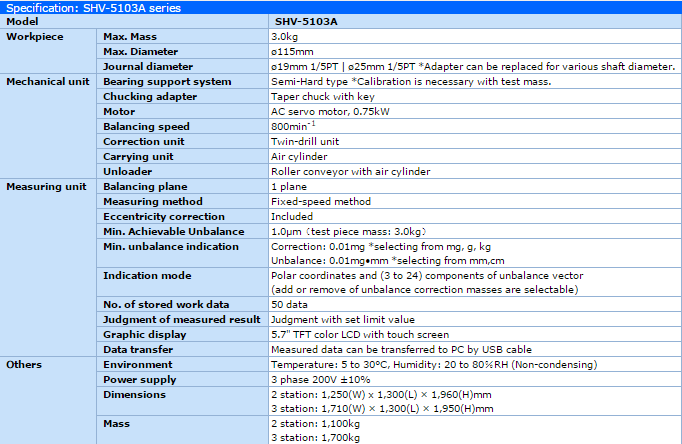

Thông số kỹ thuật
