Fully automatic balancing machine for motor of EV or HV etc. Once workpiece is mounted on the machine, measurement and correction are performed at same arrangement. Correction of unbalance is performed by lathe-unit.
Balancing plane : 1 and 2 planes
Workpiece Mass : 30kg max.
Rotor dia.: ø350mm max.
Chucking adapter : Pneumatic chuck
Balancing Speed : 800min-1
Min. Achievable Unbalance :1.0 μm

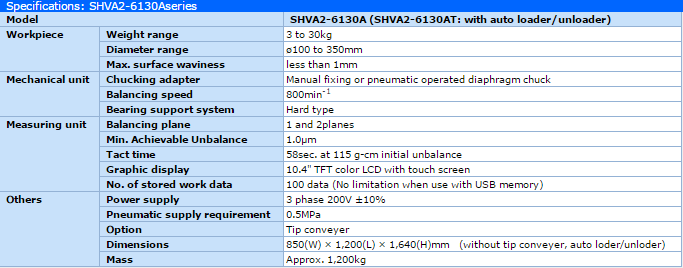

Thông số kỹ thuật
