With three current waveforms available -continuous, pulse or AC current- from 100 µA to 10 A and high flexibility of trigger and sampling conditions, OM 22 low resistance ohmmeter covers a wide range of applications: Cable resistance and resistivity measurement, inductive resistance measurement (motors and transformers winding resistance),contact resistance measurement (connectors, switches, relays…),test of low power electrical components (fuses…) and heat sensitive devices, metallisation / earth bonding and ground continuity measurement.
OM 22 is a programmable instrument, ideal for use on test benches: it has 6 configurations to be modified and recalled by users upon request through the 6 direct keys on the front board. Every configuration defines every measurement aspects: range, current waveform and value, number of measurements per cycle with temporisation, storage conditions, temperature compensation, measuring unit, metal under test, calculations of coil heating or W/km, alarm settings, maximum measurement voltage, analogue output, trigger conditions…

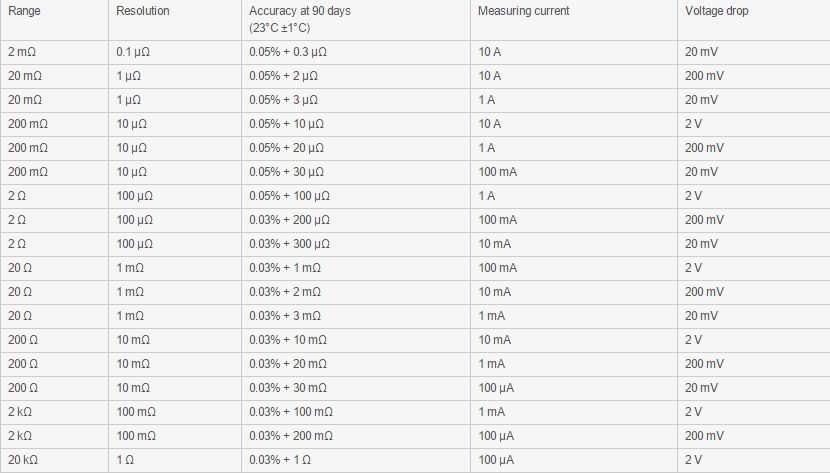

Thông số kỹ thuật
