It provides extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…),easily accessible through quick menus by function.
The instrument simultaneously measures and simulates:

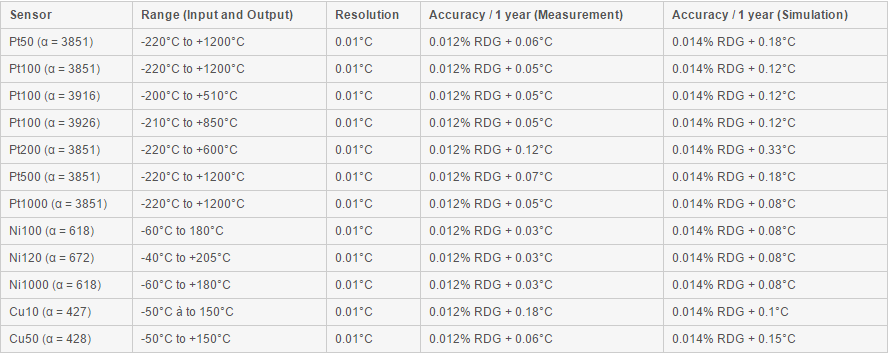

Temperature: Up to 0,014% RDG
Resistance: Up to 0,012% RDG, 4 KΩ range
Current: Up to 0,0175% RDG, 50 mA range + 24 V loop supply
Voltage: Up to 0,013% RDG, 50 V IN / 20 V OUT range
Frequency: Up to 0,005% RDG, 20 KHz range (10 KHz in simulation)
Thông số kỹ thuật
Sản phẩm khác thiết bị AOIP
