The Wilcom FR2 Fiber Ranger Fault Locator is a rugged, lightweight, hand-held , easy-to-use optical fault locator for multimode and singlemode applications. Using OTDR ( Optical Time Domain Reflectometer ) technology, the FR2 is designed to pinpoint faults in optical cable, that can be over 20 kilometers away, with amazing accuracy. The FR2 operates at the industry standard wavelength of 1310nm, and can display the distance to the fault in meters or feet.
Useful applications for the FR2 include testing: Wide Area Networks (WANs), telecommunication spans of up to 20 kilometers, Fiber-to-theCurb, installation and maintenance of multimode and singlemode fiber cabling, and Military systems. The FR2 is an excellent tool for locating
faulty connectors, end-of-fiber, and breaks in multimode and
singlemode fiber cable.

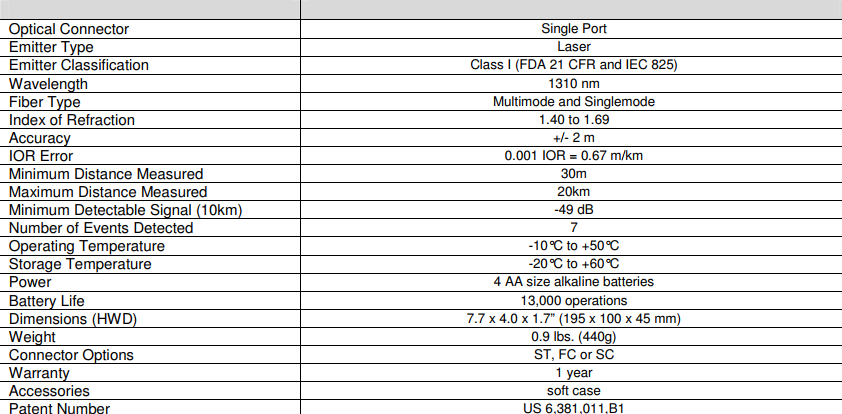

Thông số kỹ thuật
