Arbitrary waveforms up to 512 K words can be output. Up to 128 waveforms can be stored in the large 4 M words memory. Highly precise waveforms are generated using high-resolution (14-bit), high-speed (120M samples/sec) sampling. Waveforms can be generated easily either via the control panel (linear interpolation of control points) or in software using the Arbitrary Waveform Editor, which also allows external data to be imported and mathematical expressions to be applied.
Preprogrammed parameter-variable waveforms can be retrieved and edited as required.
Arbitrary waveforms up to 512 K words can be output. Up to 128 waveforms can be stored in the large 4 M words memory. Highly precise waveforms are generated using high-resolution (14-bit), high-speed (120M samples/sec) sampling. Waveforms can be generated easily either via the control panel (linear interpolation of control points) or in software using the Arbitrary Waveform Editor, which also allows external data to be imported and mathematical expressions to be applied.
Preprogrammed parameter-variable waveforms can be retrieved and edited as required.

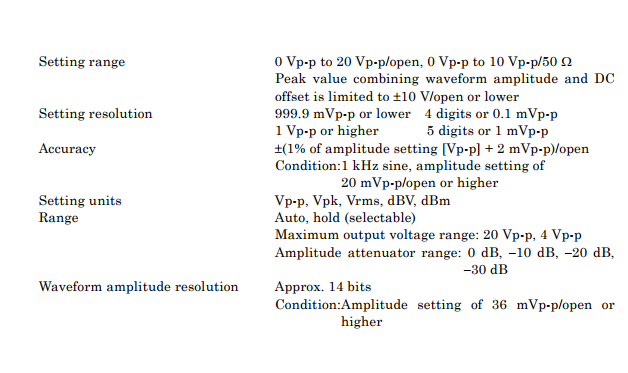

Thông số kỹ thuật
