Stand-alone Production Universal Device Programmer FlashMax-8G EE Tools

Mã sản phẩm: FlashMax-8G
Sử dụng cho Model:
Hãng SX: EE Tools
Xuất xứ
Bảo hành
Tình trạng

Tình trạng: Còn hàng

Đặt hàng
Stand-alone Production Universal Device Programmer
Model: FlashMax-8G
Hãng: EE Tools


Yêu Cầu Giá Tốt

Thông tin sản phẩm

Built-in memory expandable to 256Mbits (standard 128Mbits) for large data storage
True Low Voltage program and verify: 1.8V, 2.7V & 3.3V devices are currently supported in addition to standard 5V-12 V parts.
Project Load and Save feature ties and saves job statistics to the individual operator.
Operating commands:Blank, Read, Program, Verify, Erase, Secure, Auto File formats i.e. Intel Hex, Motorola S-records, Tektronix Hex,JEDEC, POF, ASCII Hex, all Binary file formats
Synchronous and asynchronous operations supported for two or more connected programming units
File download and upload
EPROM Auto ID, device auto-sensing and device insertion check
Stand-alone or remote PC-Controlled universal programmer,expandable for production when needed.
100-250 AVC internal switch-mode power supply (no fan required)
PC driven via Hi-speed parallel or RS-232
Split programming for memory devices
Device Insertion Check to confirm device is inserted correctly i.e. bent pin, contaminated contact
Powerful memory-editing functions
Fast software device updating for future devices
AUTO command for multi-chip programming

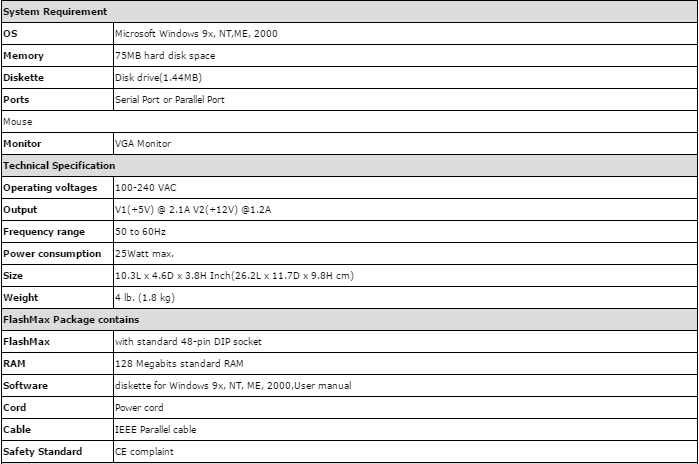

Thông số kỹ thuật


thong-so-ky-thuat-FlashMax-8G



Có thể bạn biết High-density Production Programmer FlashMaxII-16G EE click để biết thông tin chi tiết
