TTi-450H/TTi-600H, our new gear measuring machine, is developed based on an existing model TTi-450E/TTi-600E. Our own new measuring method “NDG” (PAT.P) is adopted and TTi- 450H/TTi-600H achieved superior high-precision measurement with competitive price. By introducing Direct Drive Motor to rotary shaft, it also achieved high-speed measurement with maintaining its high accuracy. TTi-450H/TTi-600H is equipped with dustproof cover. This has environmentally-conscious and space-saving design. TTi-450H can measure gears of up to 12 module OD ⏀ 500mm, and TTi-600H up to 20 module OD ⏀ 650mm

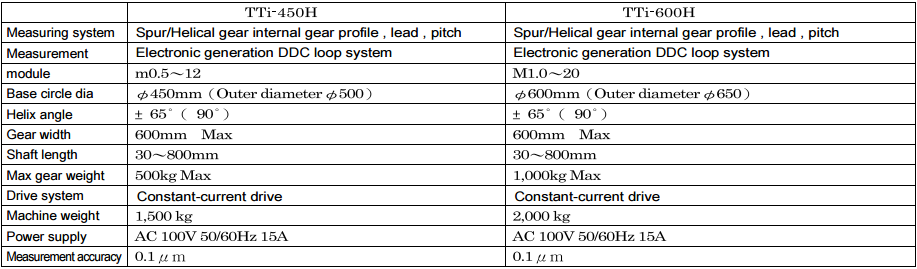

Thông số kỹ thuật
