An EPM unit is made of:
the electrolytic resistance contained within a tank complete with electrodes of a size rated for the specific kW rating.
the MV enclosure housing the short-circuit contactor.
the LV enclosure which contains the control system.
Tank: The tank is manufactured with heavy duty sheet steel 30/10 to 50/10 mm gauge, and is normally supplied complete with lifting eye bolts Tank capacity and dimensions are determined by the motor rating.
The tank is filled through a filling flap and emptied through valves situated at the base of the unit, which are normally locked in the ‘closed’ position.

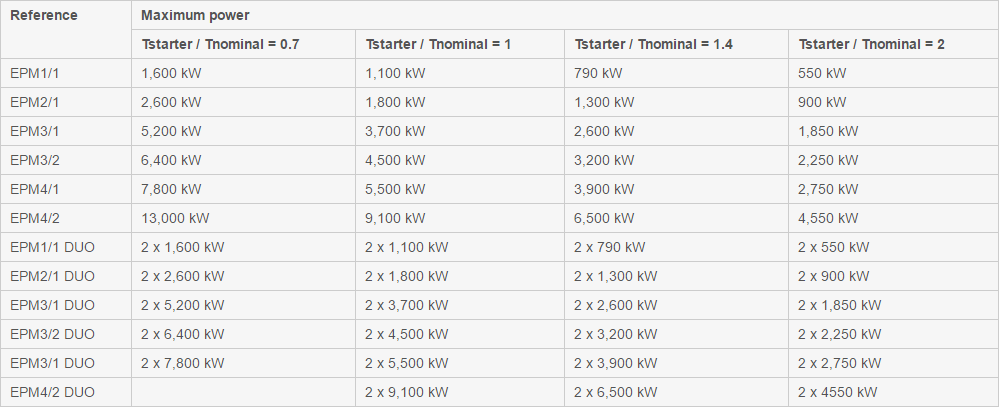

Thông số kỹ thuật
